PageAlarm

PageAlarm is an option of PageRouter Pro used to deliver detailed alarm messages from
existing Industrial Monitors and Processing systems to plant staff carrying wireless devices.

Reduce response time to manufacturing alarms by notifying plant personnel with onsite pagers in
seconds. Alarms can also be sent to commercial pagers, Blackeberrys and email addresses.

Factories spend thousands of Dollars in sophisticated computerized manufacturing controllers.
When something goes wrong, they only turn on strobe lights and optional bells go off, but there
is no information of what is happening at that instant until someone goes to the computer
controller. Some systems display critical warning messages sometimes ignored because
operators cannot stay all the time in front of the controller computer. Some systems send
emails that most of the time, are delivered too late.

This valuable time lost can cost thousands of Dollars in production and machine damages.

PageRouter Pro with PageAlarm delivers DETAILED warning and alarm messages produced
by your existing computerized Production Controller to staff regardless where they are at that
moment in the plant. Messages to plant staff are delivered in a few seconds.

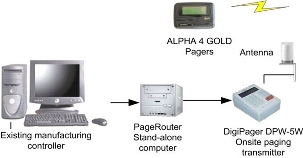

A PageRouter Pro with PageAlarm consists of three parts:

- A PageRouter computer,
- A DigiPager Encoder transmitter with antenna
- Pagers.

Connect the existing
Manufacturing Controller to
the PageRouter computer using
a serial cable. Simple!

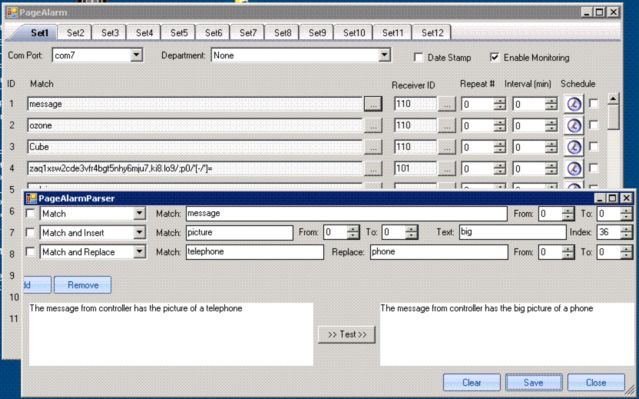

PageAlarm provides a very user-friendly parser to filter and replace portions of the alarm text
message according to user's criteria. For example, this is a message received from existing
Manufacturing Controller over the serial connection:

!T1- 1:29:56 pm THU 27-SEP-07 COMMON TROUBLE POINT FOR NODE: 26 NODE MISSING
TROUBLE ACKED AT MAIN PANEL

ACTION: Remove characters shown in red. Replace 26 with FRONT DOOR WEST SIDE. Append
with date and time of transmission by PageRouter

RESULT: FRONT DOOR WEST SIDE. TROUBLE ACKED AT MAIN PANEL. 06/12/09 10:24:12 AM.

PageAlarm has 12 sets each of 96 parsers. Each set can be assigned to a serial port. Each
parser can be assigned to send the alarm message result to one or a group of individuals.

With other PageRouter Pro options, alarm messages can be sent to individuals with
commercial pagers, Blackberrys or other email destinations.

You can use the parser monitor calendar to select the time of the day of the week that you
want PageRouter Pro to actively parse the corresponding incoming text. You can also select a
number of message transmission repeats and the repeat interval.

We offer a PageRouter Pro kit consisting of a PageRouter Shuttle computer, a DigiPager
Wireless transmitter with antenna and any quantity of onsite ALPHA4 Gold pagers.

If you prefer, we can provide PageRouter Pro for installation in your own computer.
PageRouter Pro can be installed in a computer with Windows 2003/2008 Server Standard or
VISTA Professional/Ultimate

Contact Canamex to configure your PageRouter Pro with PageAlarm.
